Technical document
Specs for the wall system.

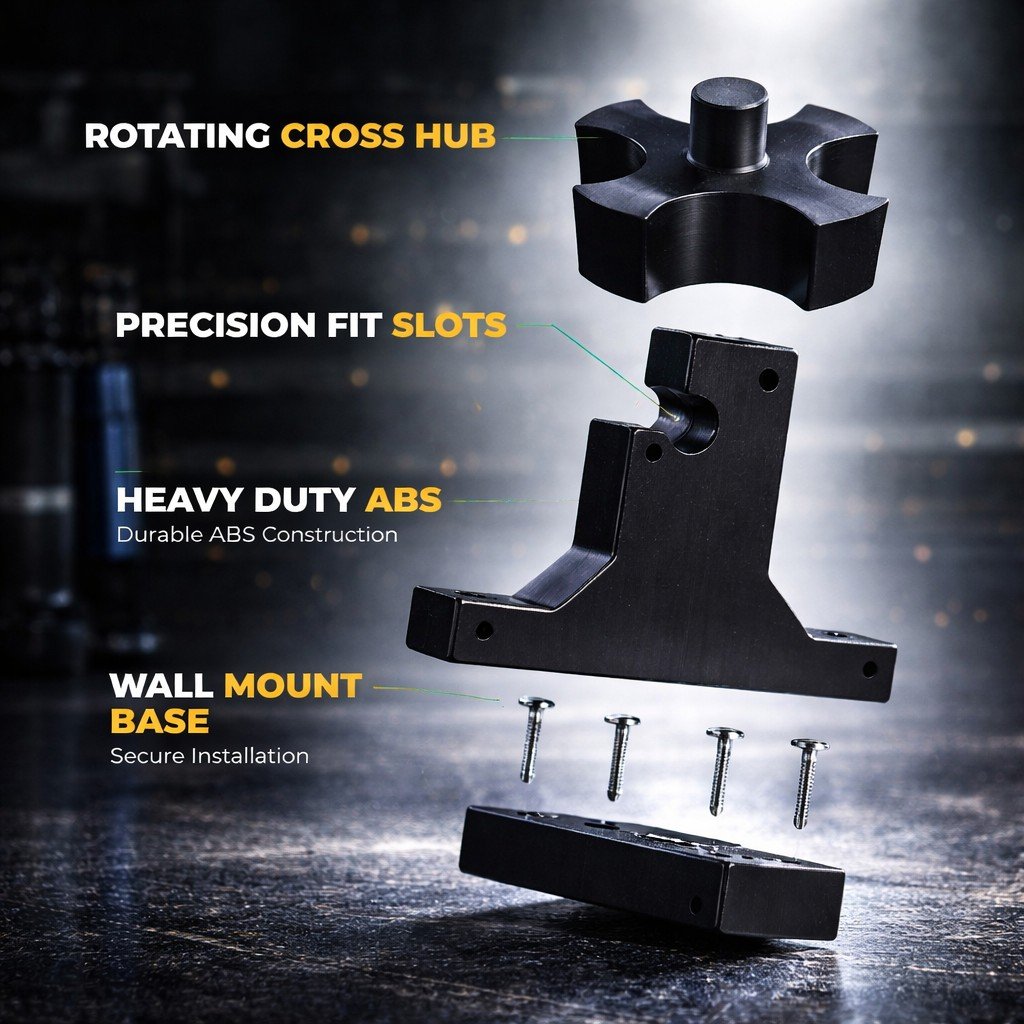

Component map for install and service.
Rotating cross hub, precision fit slots, heavy duty ABS body, and wall mount base are called out for quick field reference.
Tint Dock is designed as a practical wall system for storing, identifying, and accessing film rolls in a production tint shop environment.
System
Wall-mounted tint film storage rail
Slot sets
6, 12, and 24 slot configurations
Material
Powder-coated steel bracket assembly
Use case
Automotive tint film rolls and shop wall organization
Expansion
Modular side-by-side layout
Finish
Industrial satin black
Mounting notes
Mount into solid blocking, studs, masonry, or an approved structural backing. Final hardware should be selected by wall type and installer judgment.
Leave clearance for roll diameter, hand access, and label visibility. Do not mount where doors, lifts, or vehicle panels can contact the system.
